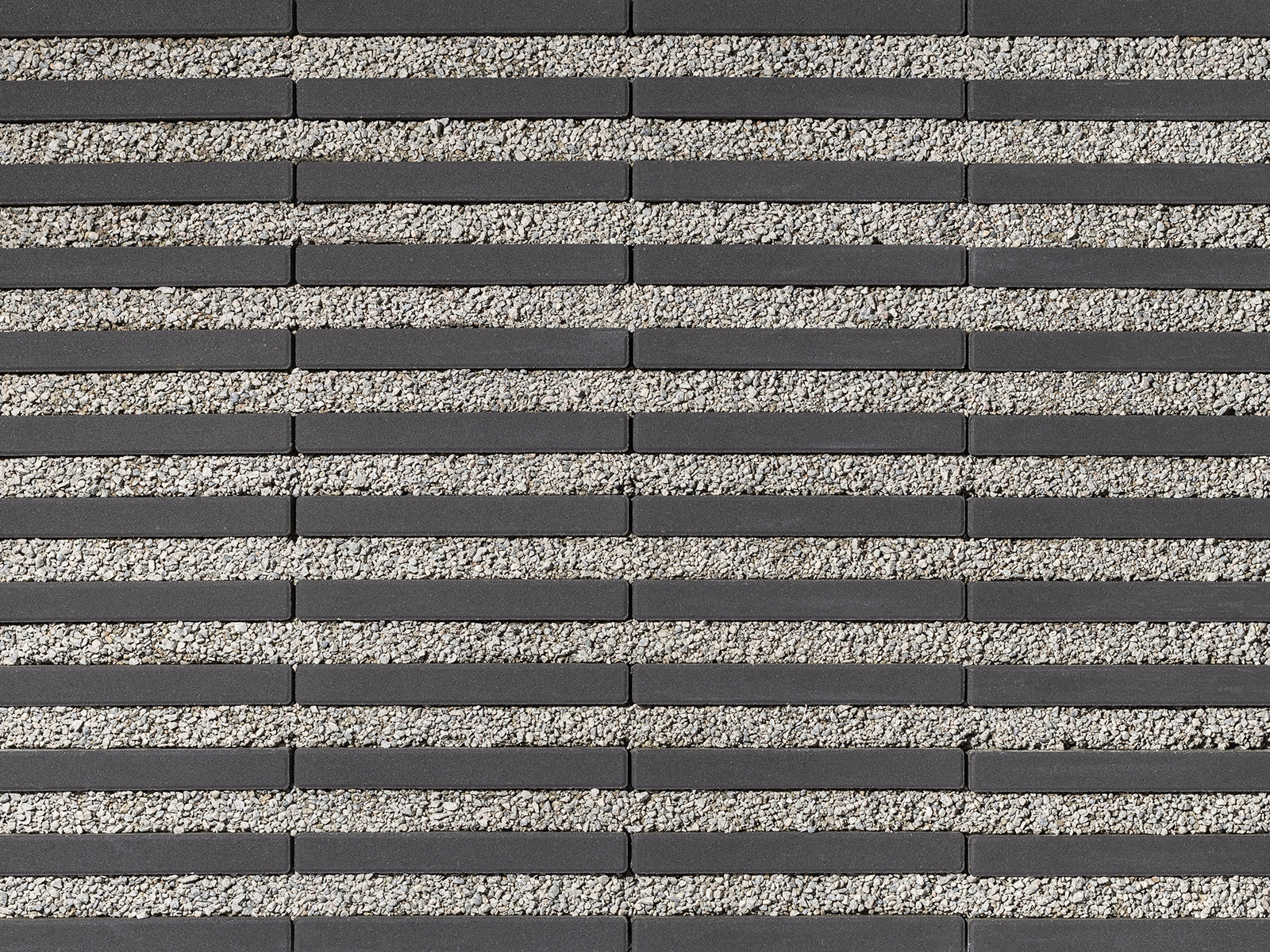

Dorado Drain Pavers

Premium Finish Face Mix Technology

Designed to fit with our Dorado XL pavers. This compatibility together with the unique look creates new solutions for Permeable areas. The percentage of Dorado Drain Paver’s surface opening is 25%.

Image shown: Dorado Drain Paver Natural (with Dorado Paver Glacier) | Photo courtesy of Benjamin Landscaping & Projects

RECOMMENDED APPLICATIONS

Patios

Walkways

Residential Driveway/Parking

Download Specsheet

COLOURS:

Colours in photographs are not exact representations, but are given to provide close reference. Measurements and product dimension are nominal.

SPECIFICATIONS:

All our pavers meet the H-20/H-S20 loading requirements. This determination allows for an occasional heavy vehicle such as a fire truck driving on the pavers. Specific site requirements will determine the appropriate paver usage. For example, heavily trafficked areas require more robust pavers installed in specific laying patterns.

For more information on H-20/HS-20 Loading, please click here:

Individual Sizes:

Size (in)	Pieces per sq.ft.	Sq.ft. per Pallet	Shipping Weight	PCS / Pallet
9″ x 12″ x 3-1/8″ 228mm x 304mm x 80mm	1.33	79	943kg / 2080lbs	105

All sizes including 3 mm Spacer Bars

NewStone Permeable Pavers

the perfect blend of beauty and functionality. Designed to reduce runoff and promote natural drainage, these eco-friendly pavers help manage stormwater while enhancing the look

INSTALLATION PATTERNS:

Product	Sizes	% of Area	Area
Dorado Drain Paver	9 x 12	68	49.5 sqft
Dorado	4.5 x 9	32	23.52 sqft

Product	Sizes	% of Area	Area
Dorado Drain Paver	9 x 12	45	36 sqft
Dorado XL	12 x 24	55	44 sqft
