Dorado XL Commercial Paver & Slabs

Premium Finish Face Mix Technology

Commercial paver designed for vehicular traffic areas
Extra large size Dorado slabs allows endless colour and pattern variations

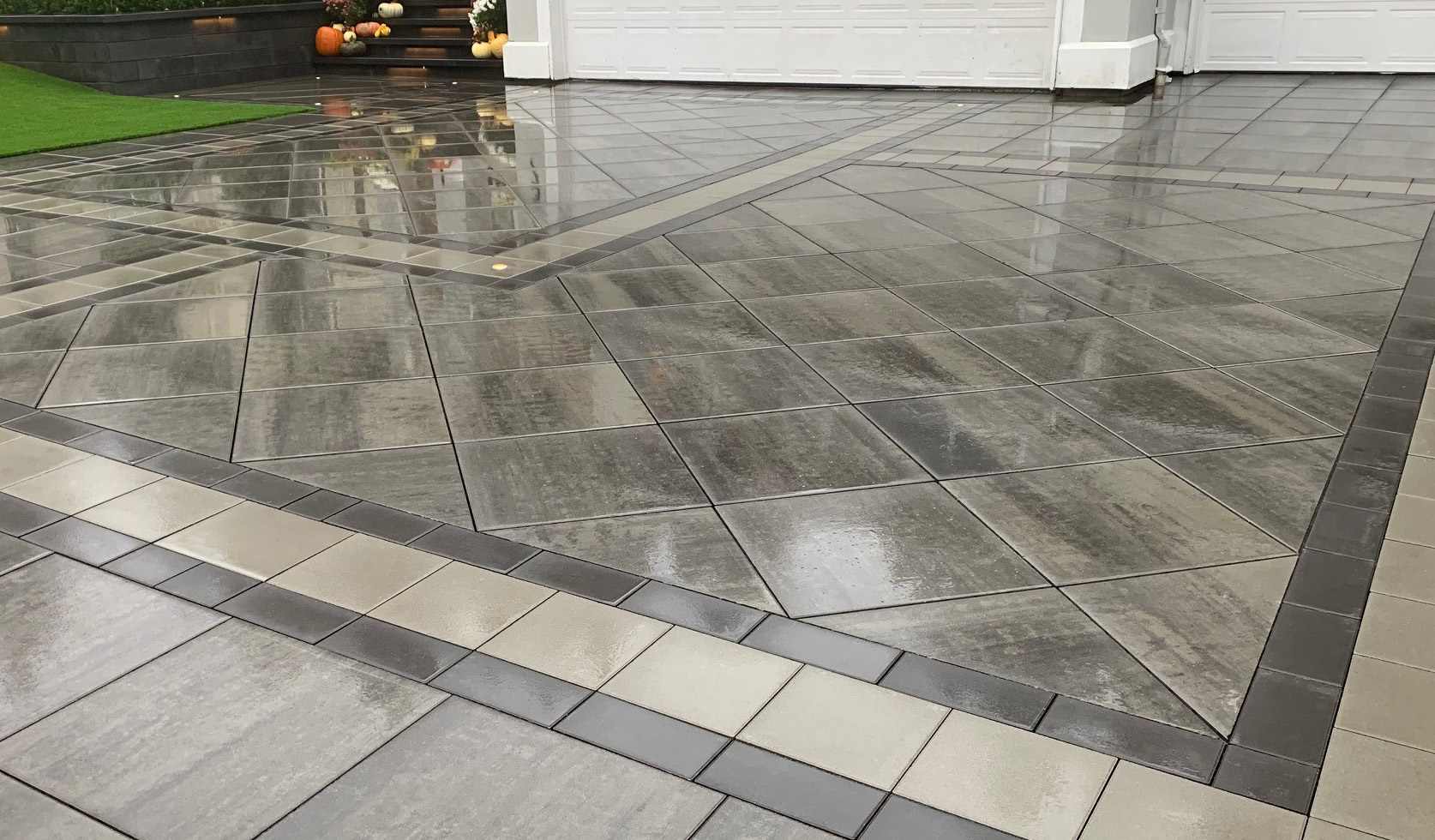

Image shown: Winter Sky 24”x24” with Dorado inlaid 6”x12” Charcoal and 12”x12” Natural

RECOMMENDED APPLICATIONS

Dorado XL Commercial Pavers:

Parking Lots

Vehicular Traffic

Dorado XL Slabs

Patios

Walkways

Residential Driveway/Parking

Download Specsheet

COLOURS:

Colours in photographs are not exact representations, but are given to provide close reference. Measurements and product dimension are nominal.

SPECIFICATIONS:

All our pavers meet the H-20/H-S20 loading requirements. This determination allows for an occasional heavy vehicle such as a fire truck driving on the pavers. Specific site requirements will determine the appropriate paver usage. For example, heavily trafficked areas require more robust pavers installed in specific laying patterns.

For more information on H-20/HS-20 Loading, please click here:

Commercial Paver Individual Sizes:

Size (in)	Pieces per sq.ft.	Sq.ft. per Pallet	Shipping Weight	PCS / Pallet
4.5″ x 9″ x 3-1/8″ 113mm x 228mm x 80mm	3.6	79	1383kg / 3050lbs	280
9″ x 9″ x 3-1/8″ 228mm x 228mm x 80mm	1.8	79	1383kg / 3050lbs	140

All sizes including 3 mm Spacer Bars

Slab Individual Sizes:

Size (in)	Pieces per sq.ft.	Sq.ft. per Pallet	Shipping Weight	PCS / Pallet
12″ x 24″ x 3-1/8″ 304mm x 606mm x 80mm	0.5	56	975kg / 2150lbs	28
24″ x 24″ x 3-1/8″ 606mm x 606mm x 80mm	0.25	56	975kg / 2150lbs	14

All sizes including 3 mm Spacer Bars

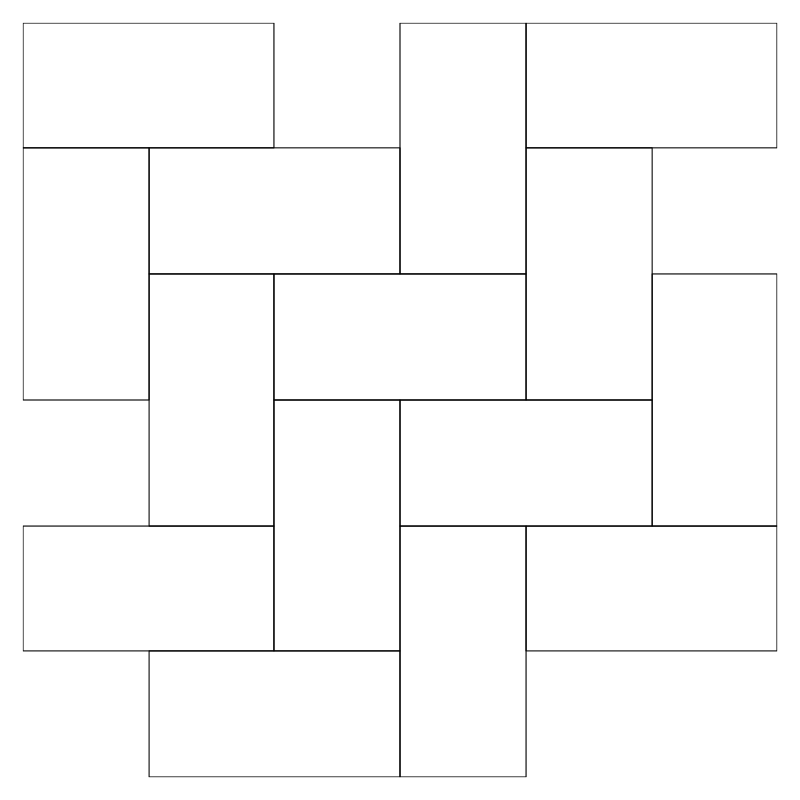

INSTALLATION PATTERNS:

Sizes	% of Area	Area
4.5 x 9	100	25.6 sqft

Sizes	% of Area	Area
9 x 9	100	14 sqft

Sizes	% of Area	Area
12 x 24	100	30 sqft

Sizes	% of Area	Area
12 x 24	100	36 sqft

Sizes	% of Area	Area
12 x 24	100	36 sqft

Sizes	% of Area	Area
24 x 24	100	36 sqft
