Old Village Stone
5-Piece Combo

Premium Finish Face Mix Technology

The 5-piece combo mold with its collection of sizes appears as an ancient Roman road did hundreds of years ago.

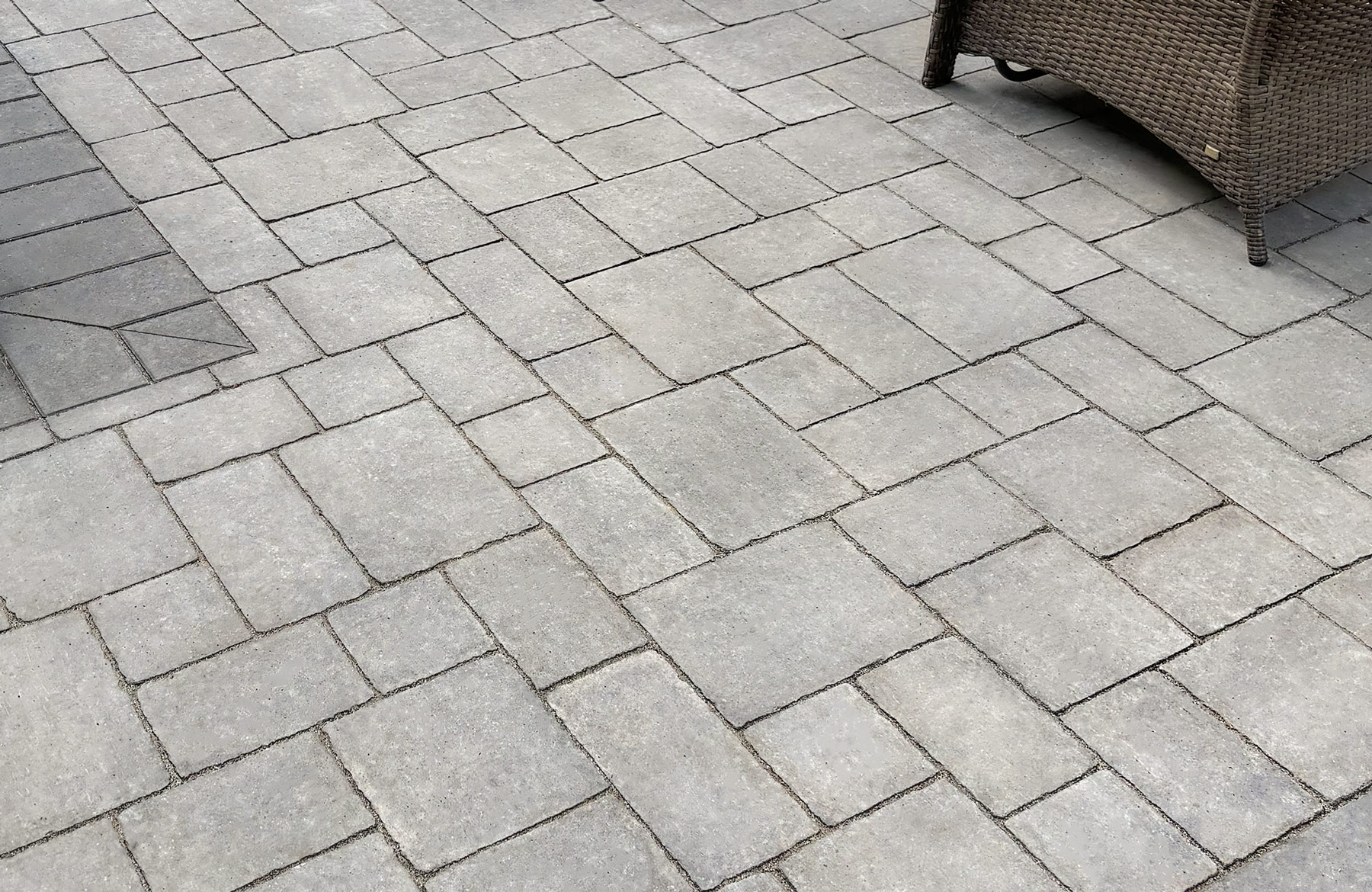

Image shown: 5-Piece Combo – Natural | Photo courtesy of Alliston Stoneworks

RECOMMENDED APPLICATIONS

Patios

Walkways

Residential Driveway/Parking

Download Specsheet

COLOURS:

Colours in photographs are not exact representations, but are given to provide close reference. Measurements and product dimension are nominal.

Old Village Stone 5-Piece Combo Natural — Natural

Old Village Stone 5-Piece Combo Charcoal — Charcoal

Old Village Stone 5-Piece Combo Espresso — Espresso

Old Village Stone 5-Piece Combo Winter Sky — Winter Sky

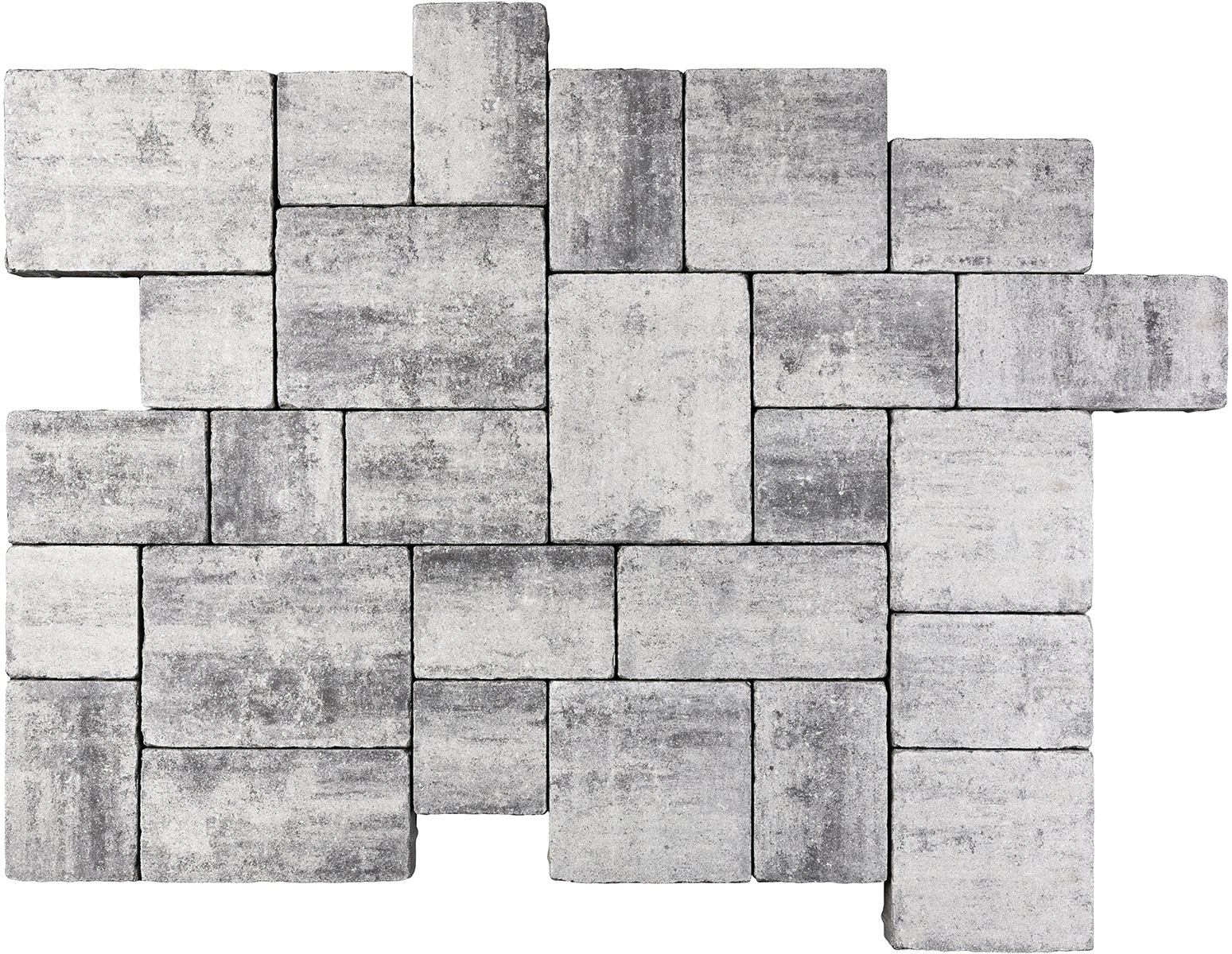

Old Village Stone 5-Piece Combo Glacier — Glacier

SPECIFICATIONS:

All our pavers meet the H-20/H-S20 loading requirements. This determination allows for an occasional heavy vehicle such as a fire truck driving on the pavers. Specific site requirements will determine the appropriate paver usage. For example, heavily trafficked areas require more robust pavers installed in specific laying patterns.

For more information on H-20/HS-20 Loading, please click here:

Combo Mold 5-Piece:

Old Village Stone 5 Piece Combo Pallet Layout

Image above show the paver configuration on the pallet.

Size (in)	Type	Sq.ft. per Pallet	Shipping Weight	PCS / Pallet
6″ x 6″ x 2-3/8″ 151mm x 151mm x 60mm	A	108	1361kg / 3000lbs	54
6″ x 9″ x 2-3/8″ 151mm x 228mm x 60mm	B			90
6″ x 12″ x 2-3/8″ 151mm x 304mm x 60mm	C			27
9″ x 9″ x 2-3/8″ 228mm x 228mm x 60mm	D			36
9″ x 12″ x 2-3/8″ 228mm x 304mm x 60mm	E			36

All sizes including 3 mm Spacer Bars

INSTALLATION PATTERNS:

Sizes	Type	% of Area	Area
6 x 6	A	12.5	6 sqft
6 x 9	B	31.25	15 sqft
6 x 12	C	12.5	6 sqft
9 x 9	D	18.75	9 sqft
9 x 12	E	25	12 sqft

Old Village Stone 5-Piece Combo
