Dorado
3-Piece Combo

Premium Finish Face Mix Technology

The 3-piece combo gives you the same layout as our popular Coastal Slate but with a flat surface instead of the riven face of the Coastal Slate.

Image shown: 3-Piece Combo – Winter Sky | Photo courtesy of Express Landscaping

RECOMMENDED APPLICATIONS

Patios

Walkways

Residential Driveway/Parking

Download Specsheet

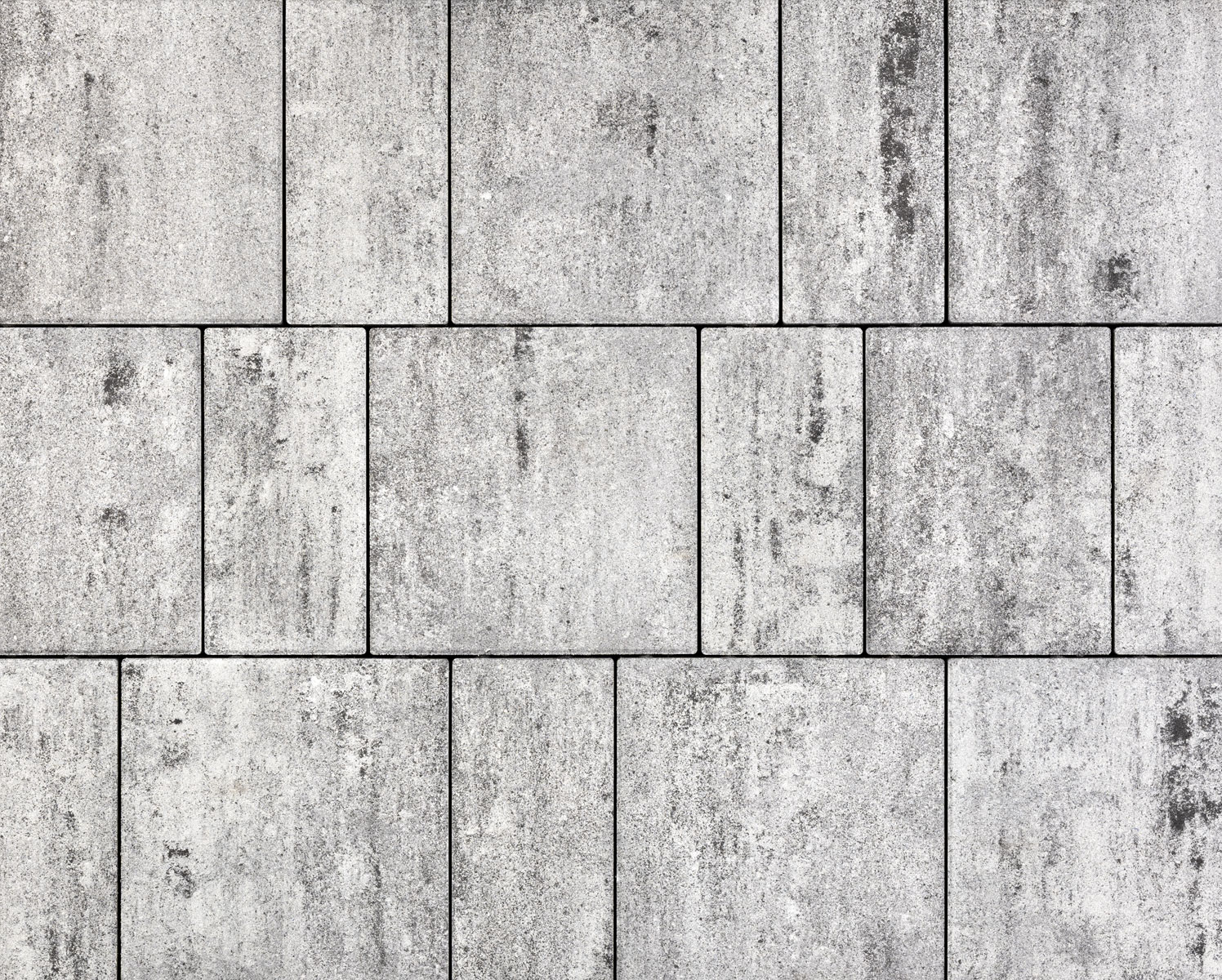

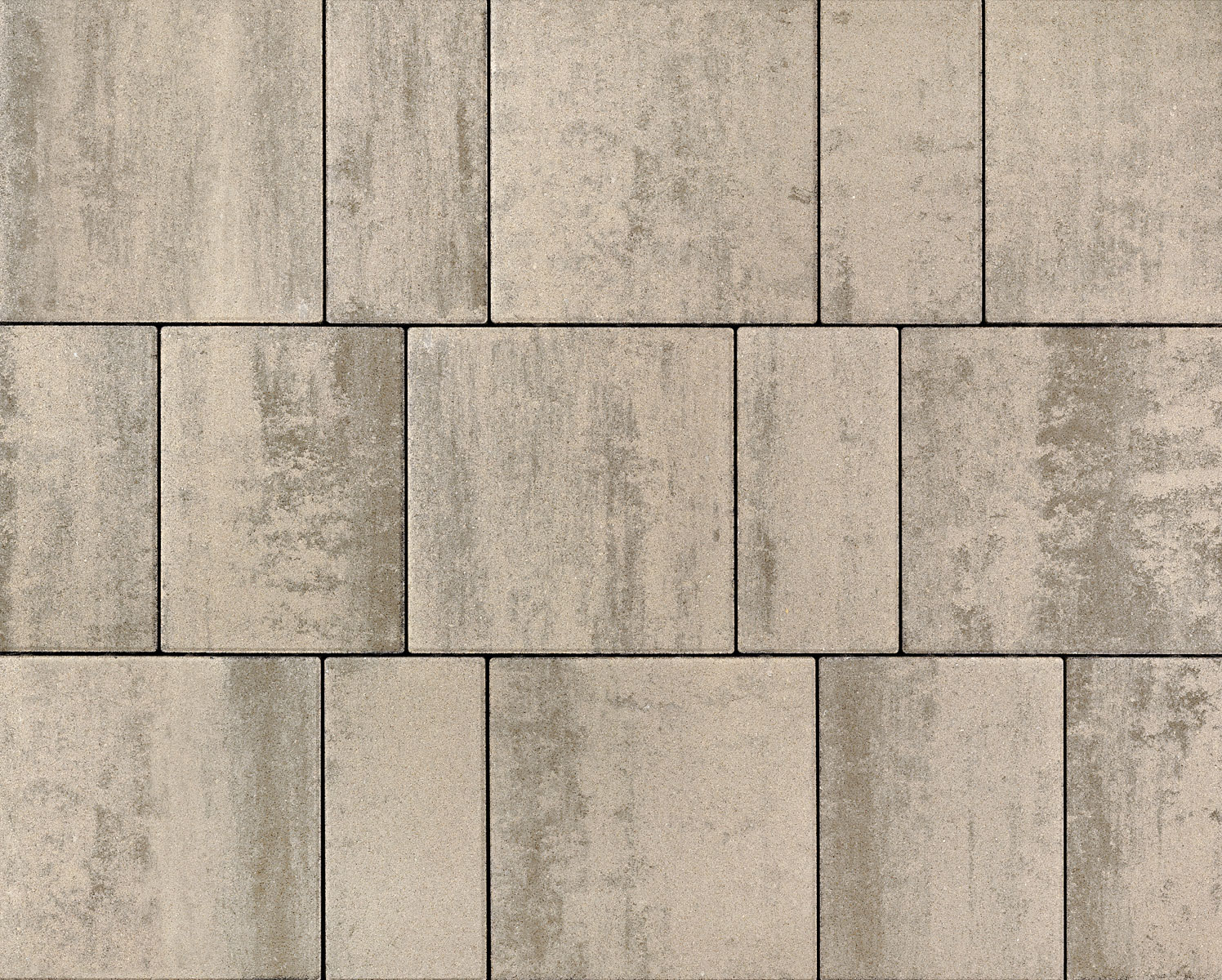

COLOURS:

Colours in photographs are not exact representations, but are given to provide close reference. Measurements and product dimension are nominal.

SPECIFICATIONS:

All our pavers meet the H-20/H-S20 loading requirements. This determination allows for an occasional heavy vehicle such as a fire truck driving on the pavers. Specific site requirements will determine the appropriate paver usage. For example, heavily trafficked areas require more robust pavers installed in specific laying patterns.

For more information on H-20/HS-20 Loading, please click here:

Combo Mold 3-Piece:

Image above show the paver configuration on the pallet.

Size (in)	Type	Sq.ft. per Pallet	Shipping Weight	PCS / Pallet
6″ x 12″ x 2-3/8″151mm x 304mm x 60mm	C	108	1361kg / 3000lbs	54
9″ x 12″ x 2-3/8″228mm x 304mm x 60mm	E			36
12″ x 12″ x 2-3/8″304mm x 304mm x 60mm	F			54

All sizes including 3 mm Spacer Bars

INSTALLATION PATTERNS:

Sizes	% of Area	Area
6 x 12	25	9 sqft
9 x 12	25	9 sqft
12 x 12	50	18 sqft

Sizes	% of Area	Area
6 x 12	25	9 sqft
9 x 12	25	9 sqft
12 x 12	50	18 sqft
