Urban
5-Piece Combo

Our Urban pavers in the 5-piece combo are the ultimate choice for the modern home. The absence of chamfers ehances the appearance of the various sizes creating the appearance of cut stone.

Image shown: 5-Piece Combo – Espresso | Photo courtesy of Wisam Landscaping & Services Ltd.

RECOMMENDED APPLICATIONS

Patios

Walkways

Residential Driveway/Parking

Download Specsheet

COLOURS:

Colours in photographs are not exact representations, but are given to provide close reference. Measurements and product dimension are nominal.

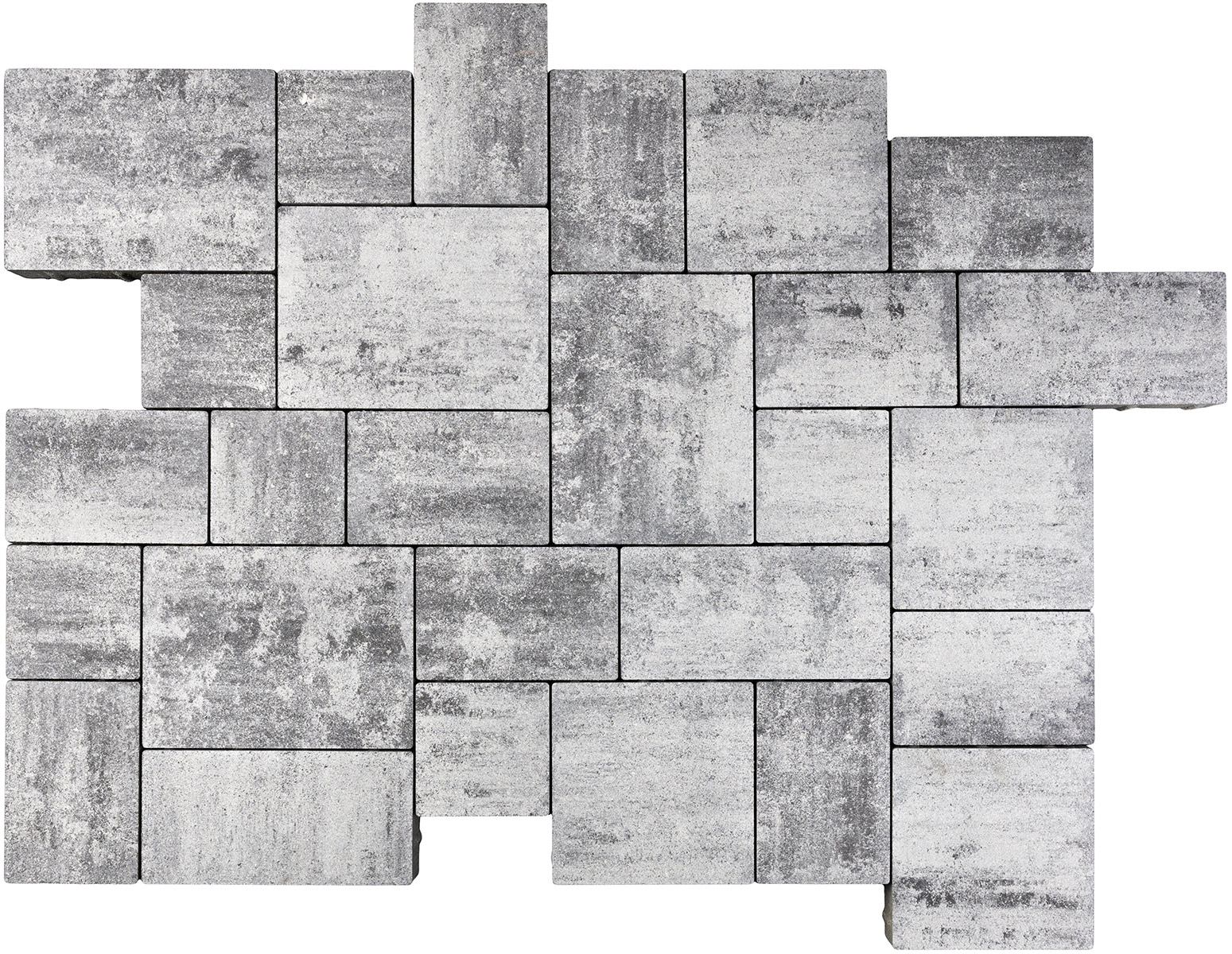

Urban 5-Piece Combo Winter Sky — Winter Sky

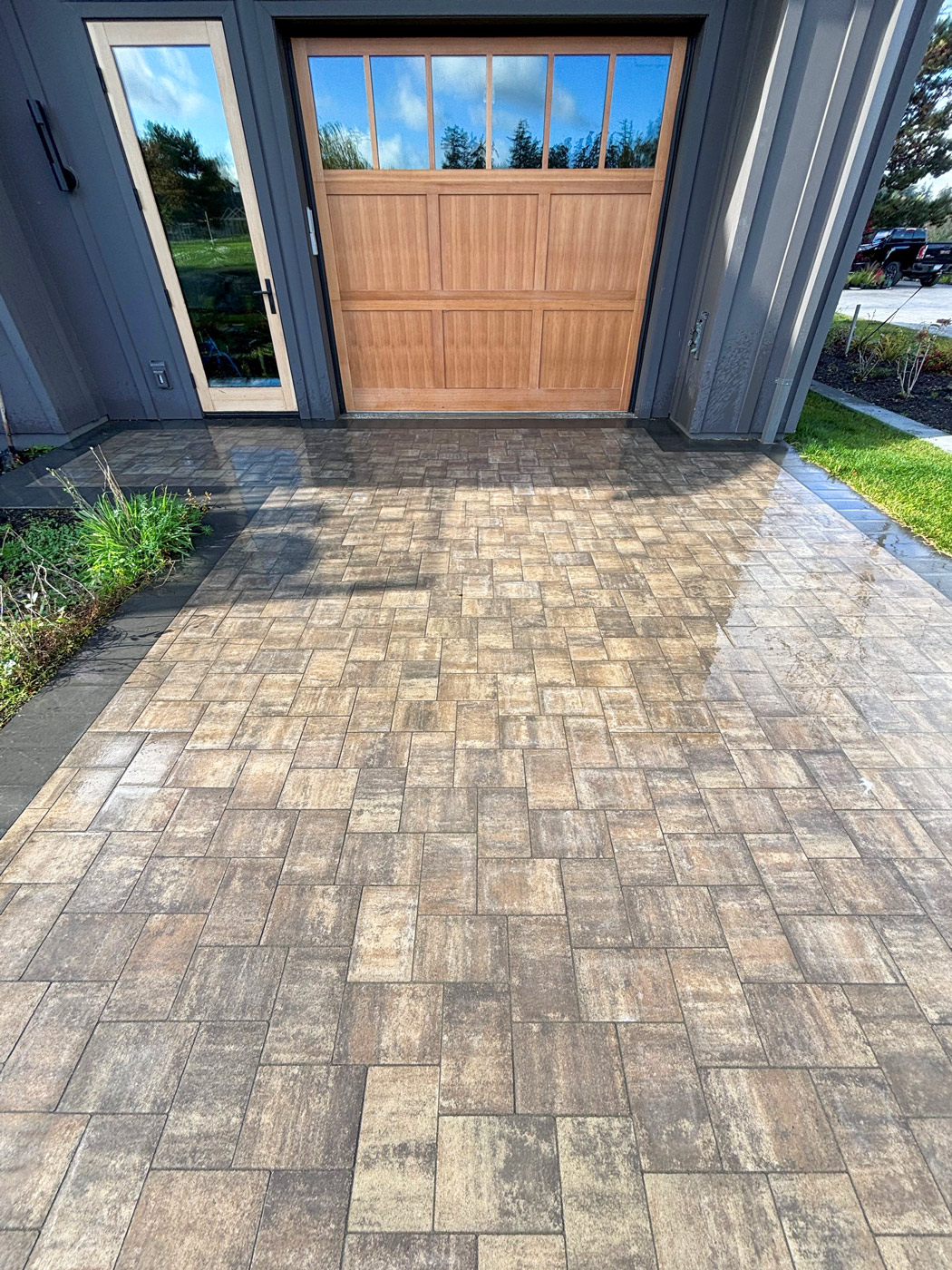

Urban Project Gallery

SPECIFICATIONS:

All our pavers meet the H-20/H-S20 loading requirements. This determination allows for an occasional heavy vehicle such as a fire truck driving on the pavers. Specific site requirements will determine the appropriate paver usage. For example, heavily trafficked areas require more robust pavers installed in specific laying patterns.

For more information on H-20/HS-20 Loading, please click here:

Combo Mold 5-Piece:

Old Village Stone 5 Piece Combo Pallet Layout

Image above show the paver configuration on the pallet.

Size (in)	Type	Sq.ft. per Pallet	Shipping Weight	PCS / Pallet
6″ x 6″ x 2-3/8″ 151mm x 151mm x 60mm	A	108	1361kg / 3000lbs	54
6″ x 9″ x 2-3/8″ 151mm x 228mm x 60mm	B			90
6″ x 12″ x 2-3/8″ 151mm x 304mm x 60mm	C			27
9″ x 9″ x 2-3/8″ 228mm x 228mm x 60mm	D			36
9″ x 12″ x 2-3/8″ 228mm x 304mm x 60mm	E			36

All sizes including 3 mm Spacer Bars

Please note, the lack of a chamfer requires installers to handle Urban pavers with more care than typical pavers.

INSTALLATION PATTERNS:

Sizes	Type	% of Area	Area
6 x 6	A	12.5	48 sqft
6 x 9	B	31.25
6 x 12	C	12.5
9 x 9	D	18.75
9 x 12	E	25

Urban 5-Piece Combo
